The continuous advancement of technology is driving the growth of data transfer rate requirements, making the 56G QSFP+ SR4 optical module an essential solution for communication needs in areas such as data centers, cloud computing, high-performance computing, and storage networks.

Technical Features of 56G QSFP+ SR4 Optical Module

The Walsun 56G QSFP+ SR4 optical module is a four-channel full-duplex, pluggable, and parallel fiber module designed for InfiniBand. It complies with FDR/QDR/DDR/SDR/fiber channel, PCIe, and SAS applications.

As a high-performance module, the 56G QSFP+ SR4 optical module is used for short-range multi-channel data communication and interconnection applications. It integrates four data channels in each direction, providing a bandwidth of 56Gbps. When using OM3 optical fiber, the working rate of each channel can reach 14.0625Gbps, with a maximum reach of 100 meters. When using OM4 optical fiber, it can reach up to 150 meters.

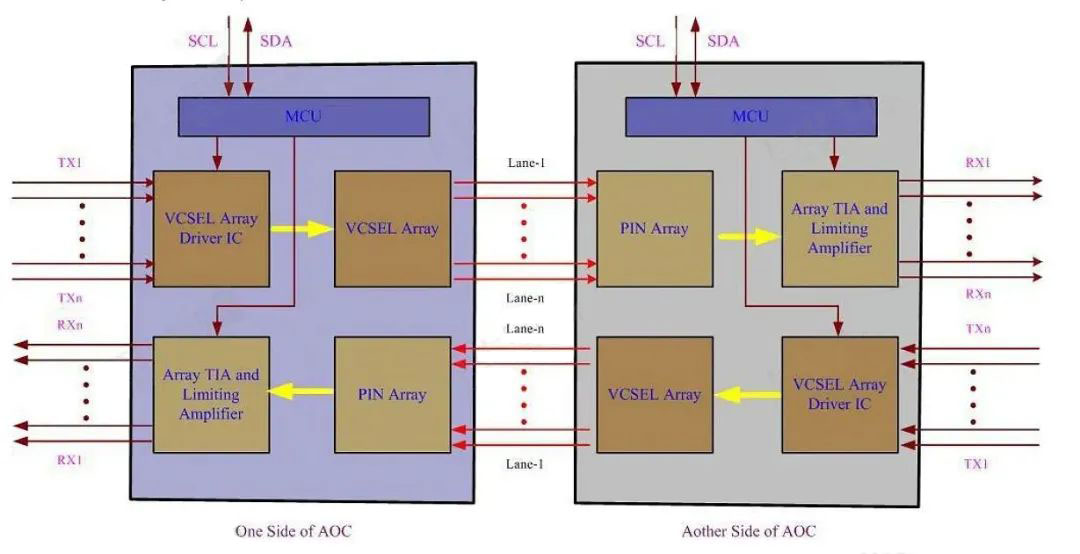

The module adopts multimode fiber system and VCSEL technology, using a standard wavelength of 850nm. The electrical interface utilizes a 38-pin edge-type connector, while the optical interface employs a 12-fiber MTP (MPO) connector.

Advantages and Applications of 56G QSFP+ SR4 Optical Module

The 56G QSFP+ SR4 optical module finds widespread applications in data centers, enterprise networks, and the communication field. It can be used for high-speed connections between servers, interconnections within data centers, and various other scenarios, providing efficient and reliable fiber optic transmission solutions for a variety of applications.

Due to its compact design and high transmission speed, the 56G QSFP+ SR4 optical module can deploy numerous ports in limited space, enhancing the overall capacity of the network. Compared to traditional combinations of multiple low-speed modules, adopting the 56G QSFP+ SR4 optical module significantly reduces the power consumption of the entire network, thereby lowering energy costs.

In summary, the 56G QSFP+ SR4 optical module, as a powerful tool for high-speed data transmission, features high transmission rates, compact design, and high reliability, providing robust support for modern network applications. As a professional module manufacturer, Walsun offers optical modules ranging from 1G to 800G. Feel free to inquire for more information!
