Product Features
l Up to 1250Mb/s data links
l Up to 10/40/80/120/160km on 9/125µm SMF
l Hot-pluggable SFP footprint
l Built-in digital diagnostic functions
l Duplex LC/UPC type pluggable optical interface
l RoHS compliant and lead-free
l Single +3.3V power supply
l Metal enclosure, for lower EMI
l Meet ESD requirements, resist 8KV direct contact voltage
l Case operating temperature : -40°C to +85°C
| Product Number | Data Rate (Gb/s) | Wavelength (nm) | Rearch (Km) | LD | Tx Power (dBm) | PD | Rx Sens (dBm) | Temperature (℃) | Download |

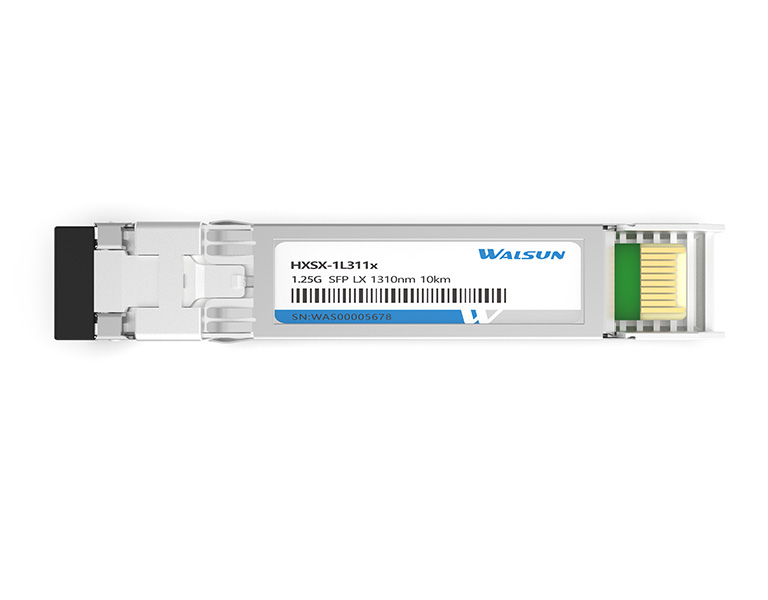

| SFP LX | 1.25 | 1310 | 10 | FP | -9～-3 | PIN | < -19 | -40~85 | |
| SFP EX | 1.25 | 1550 | 40 | DFB | -1～4 | PIN | < -20 | -40~85 | |
| SFP ZX | 1.25 | 1550 | 80 | DFB | 0～5 | PIN | < -26 | -40~85 | |
| SFP ZX+ | 1.25 | 1550 | 100 | DFB | 0~5 | PIN | <-28 | -40~85 | |
| SFP ZX++ | 1.25 | 1550 | 120 | DFB | 0～5 | APD | < -31 | -40~85 | |
| SFP ZX++++ | 1.25 | 1550 | 160 | DFB | 1～6 | APD | < -33 | -40~85 |
