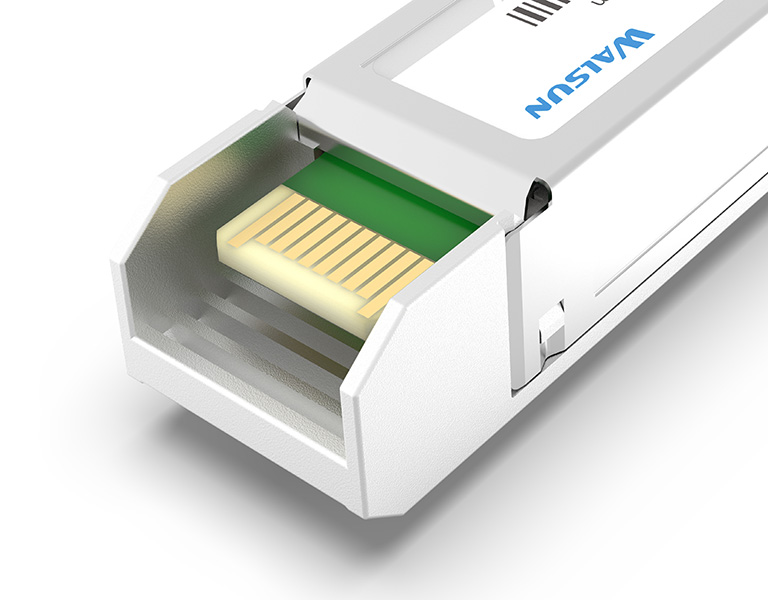

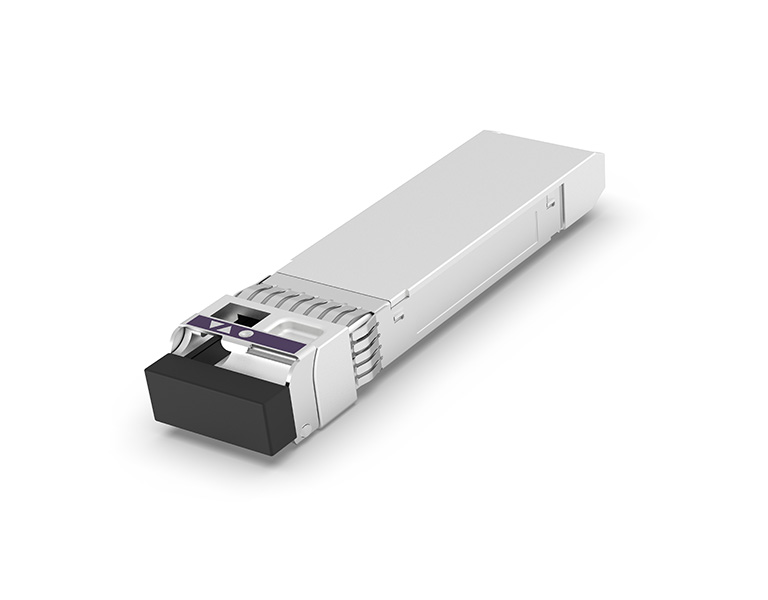

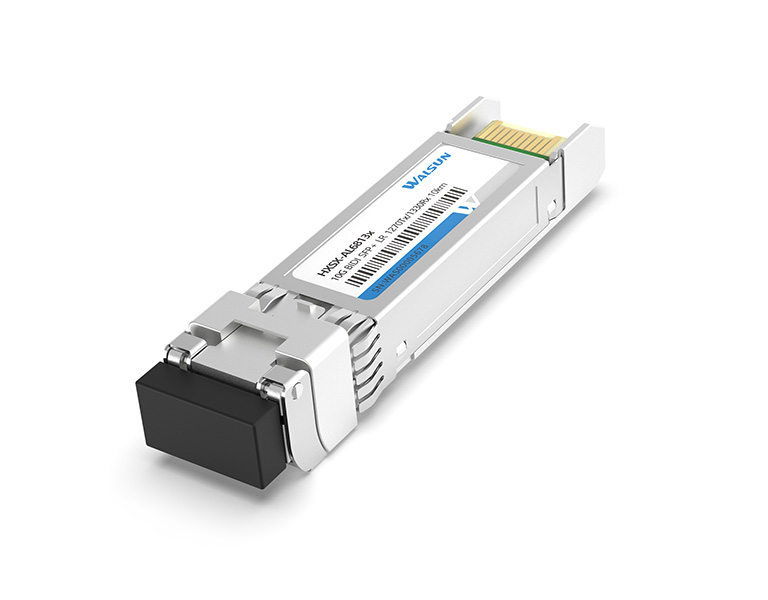

Product Features
l Up to 11.3Gb/s data links
l Up to 10/40/60/80/100km on 9/125µm SMF
l Hot-pluggable SFP+ footprint
l BIDI LC optical connector
l RoHS-10 compliant and lead-free
l Single +3.3V power supply
l Compliant with SFF+MSA and SFF-8472
l Support Digital Diagnostic Monitoring interface
l Metal enclosure, for lower EMI
l Meet ESD requirements, resist 8KV direct contact voltage
l Case operating temperature : -40°C to +85°C
| Product Number | Data Rate (Gb/s) | Wavelength (nm) | Rearch (Km) | LD | Tx Power (dBm) | PD | Rx Sens (dBm) | Temperature (℃) | Download |
| BIDI LR | 10 | 1270/1330 | 10 | DFB | -6.0～-1.0 | PIN | < -14.4 | -40~85 | |
| BIDI ER | 10 | 1270/1330 | 40 | DFB | 0～5 | PIN | < -15 | -40~85 | |
| BIDI ZR | 10 | 1490/1550 | 80 | EML | 0～5 | APD | < -23 | -40~85 | |
| BIDI ZR+ | 10 | 1490/1550 | 100 | EML | 0～5 | APD | < -25 | -40~85 |
