Product Features
l Up to 1.25Gb/s data links
l Up to 10/40/80/120/160km on 9/125µm SMF
l Hot-pluggable SFP footprint
l BIDI LC/UPC type pluggable optical interface
l RoHS compliant and lead-free
l Support Digital Diagnostic Monitoring interface
l Single +3.3V power supply
l Metal enclosure, for lower EMI
l Meet ESD requirements, resist 8KV direct contact voltage
l Case operating temperature : 0°C to +70°C/ -40°C to +85°C
| Product Number | Data Rate (Gb/s) | Wavelength (nm) | Reach (km) | LD | Tx Power (dBm) | PD | Rx Sens (dBm) | Temperature (℃) | Download |
| HXSX-1LXX13C/I | 1.25 | 1310/1490 | 10 | FP | -9.0～-3.0 | PIN | < -20 | 0~70/-40~85 | |
| HXSX-1LXX43C/I | 1.25 | 1310/1550 | 40 | DFB | -5~0 | PIN | <-24 | 0~70/-40~85 | |
| HXSX-1LXX83C/I | 1.25 | 1490/1550 | 80 | DFB | 0～5 | PIN | <-26 | 0~70/-40~85 | |

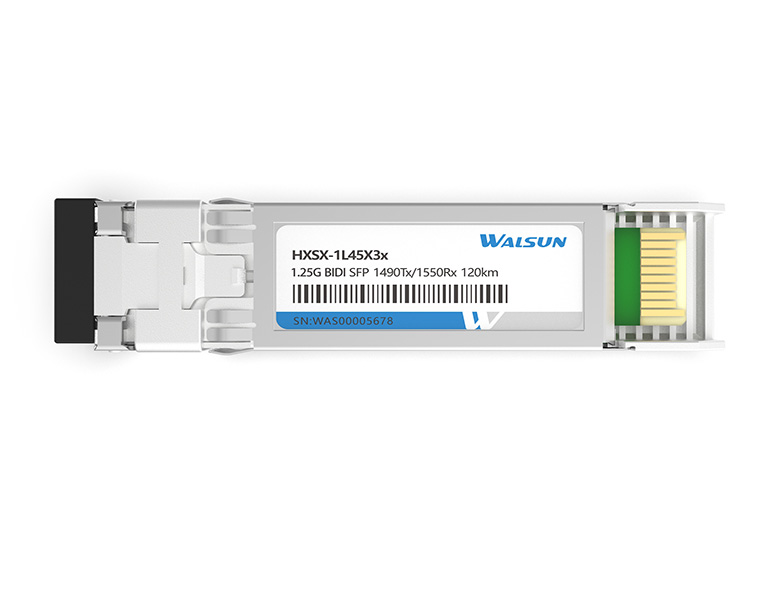

| HXSX-1LXXX3C/I | 1.25 | 1490/1550 | 120 | DFB | 0～5 | APD | < -31 | 0~70/-40~85 | |
| HXSX-1LxxY3C/I | 1.25 | 1490/1550 | 160 | DFB | 1～6 | APD | < -33 | 0~70/-40~85 |
